产品描述Product description
◆JB09-3或JB09-03是一款通用型的德式插座，集成防尘防水功能，应用于干湿两用吸尘器及各类台式电动工具等。
◆JB09-3 or JB09-03 is one general european type socket for used in Germany, integrated dustproof and waterproof, for used in Dry and Wet Vacuum Cleaners or Bench top Power-tools, etc.
产品特征Features
◆可选带以下附件 Optional with the accessories as follows:
→儿童保护滑块 Children protection slide block
→防水橡胶垫片 Waterproof rubber gasket
技术数据Technical data
→最大电流 Max. current16A
→防护等级 Protection typeIP44
端子类型Terminals
◆输入端 Input side:
→L, N极：螺钉端子 L, N Pole: Screw terminals M3
→接地极：接线柱端子 Earthing Pole: Pillar terminals φ=4mm

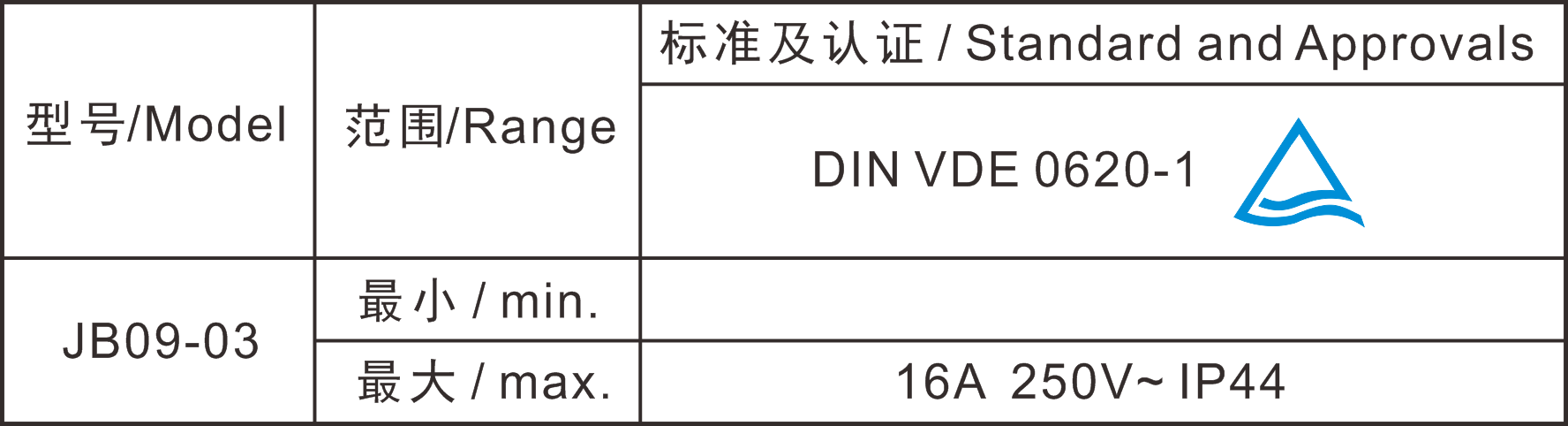

电气参数和认证 Electric Rating and Certification
